M5-S3 (Master)

The M5-S3 Method 5 Master Isokinetic sampling system provides additional Probe Assemblies, a longer Umbilical Cable, additional liners of various lengths, and Orsat capabilities, built in to the console.  This system utilizes Stainless Steel quick connects and calibration orifices. Along with additional equipment the Master System includes a cleanup kit and transport cases for the console, pump, and glassware. (click on image to enlarge)

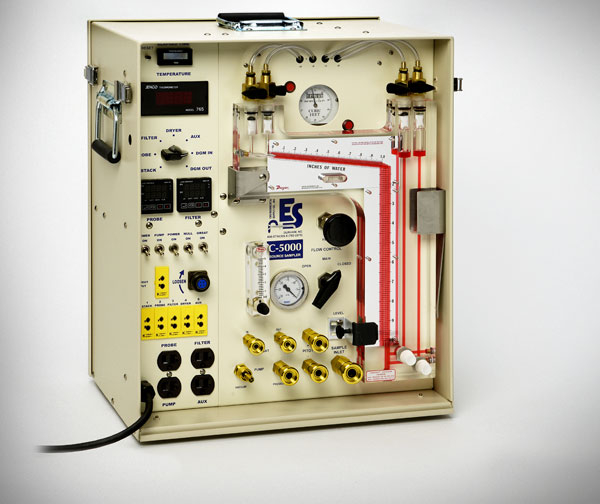

c-5000_web

◄ Back
Picture 2 of 7

Related Products

C-5000 Console


CO-QC8-B-SET Brass Critical Orifice Set


Sampling Console with Orsat Capabilities Built-in
Enclosed Housing Pump with Stainless Steel Quick Connects
Transport Cases for Console and Pump
Stainless Steel Calibration Orifice Set for Console Calibration
Sample Cases, including Hot Box and Impinger Box
Stainless Steel Lined Heated Probe Assembly
Pyrex Probe Liners
Stainless Steel Nozzles
Umbilical with an Adapter
Double Set of Method 5 Glassware in a Transport Case
Clean Out Brush and Cleanup Kit
Calculator with Custom Software
Suspension Rail System

Qty.  I      Part #      I         Description

(1)   C-5000-SO                 Console with Stainless Steel QC and Built In Orsat Capability
(1)   M5-CTC                    Transport Case for Method 5 Console
(1)   CO-QC8-SS-SET     Stainless Steel Critical Orifice set
(1)   M5-HB                       Heated Filter Box ,115V/700W
(2)   M5-CB06                   6 Impinger Cold Box
(1)   PRA-S03                   3 Foot Effective Length Probe Assembly with Stainless Liner
(1)   PRA-S05                   5 Foot Effective Length Probe Assembly with Stainless Liner
(1)   PRA-S07                   7 Foot Effective Length Probe Assembly with Stainless Liner
(2)   PRL-P03                    Pyrex Probe Liner, 3 Foot Effective Length, #28 Ball With O-Ring
(2)   PRL-P05                    Pyrex Probe Liner, 5 Foot Effective Length, #28 Ball With O-Ring
(2)   PRL-P07                    Pyrex Probe Liner, 7 Foot Effective Length, #28 Ball With O-Ring
(1)   P0523-HS-SS            Pump in Closed Housing with Stainless Steel Quick Connects
(1)   M5-PTC                     Transport Case for Method 5 Console
(1)   UC-025                      Umbilical Cable, 25'
(1)   UC-050                      Umbilical Cable, 50'
(1)   M5-UA                       Umbilical Adapter with Check Valve
(1)   PRNS-S                     Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
(1)  GPBO-3C                   Professional Glassware Set with Transport Case
(1)  GF3-107                     Glass Fiber Filters, Box of 100
(1)  M5-CK                        Method 5 Cleanup & Recovery Kit
(4)  M5-CK05                    Probe Brush Extension Rod, (18")
(1)  M5-PC-Ti83                Ti83 Calculator with Isokinetic Calculations Programs
(2)  M5-SRS-07                Suspension Rail System, 7 Foot
(1)  PA-PMB                     Port Mounting Bracket with Slotted Channel

Go to GPBO-3C for glassware set details

OPTIONS:
M5-S3-DMV    The Master Method 5 System with Digital Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts

M5-S3-M    The Master Method 5 System with Metric Dry Gas Meters, and Metric Scales on the Inclined Manometer

M5-S3-MV    The Master Method 5 System with Metric Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts
